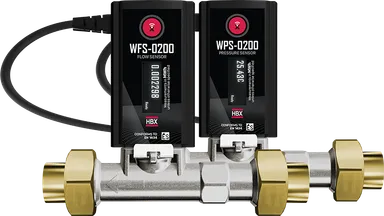

Energy Sensor
WiFi Energy Sensor
Flow Sensor
WiFi Flow & Temperature Sensor
HBX Control Systems
WiFi Enabled SensorLinx Compatible
Where to Buy Product Information

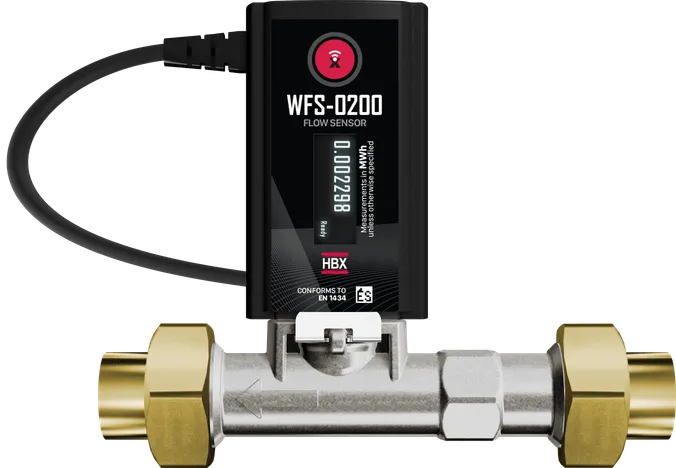

The WFS Sensor is a combined flow and temperature sensor (two-in-one). The sensor is fully compatible with wet, aggressive liquids. The sensor is based on the principle of vortex shedding behind a bluff body. The sensor is based on MEMS sensing technology in combination with the corrosion-resistant Silicoat® coating technology on the sensor chip. The sensor is a lightweight and robust compact flow meter than can be installed in tight spaces vertically or horizontally. The sensor can be used for many applications including flow metering for individual tenant billing.
Flow Rates & Part Numbers
| L/MIN | GPM | Flow Pipe (Housing) | Union Pipe Configuration | HBX Part # |
|---|---|---|---|---|
| 1– 18 | 0.26 – 4.75 | Composite, Stainless Steel | 1/2" | WFS-0200-18 |
| 2 - 40 | 0.52 - 10.60 | Composite, Stainless Steel | 1/2" | WFS-0200-40 |
| 5 - 100 | 1.32 – 26.40 | Composite, Stainless Steel | 3/4" | WFS-0200-100 |
| 10 - 200 | 2.64 – 52.80 | Composite, Stainless Steel | 1" | WFS-0200-200 |
| 20 - 400 | 5.28 – 106.0 | Composite | 1 1/2" | WFS-0200-400 |
Product Features
Flow and temperature metering
Measure up to 106 GPM
NSF 61 & 372 Certification
DHW metering for tenant billing
Vortex in-flow sensor
Alarm notification for Flow and Temperature
Manuals & Resources
Stay comfortable.
Stay connected.

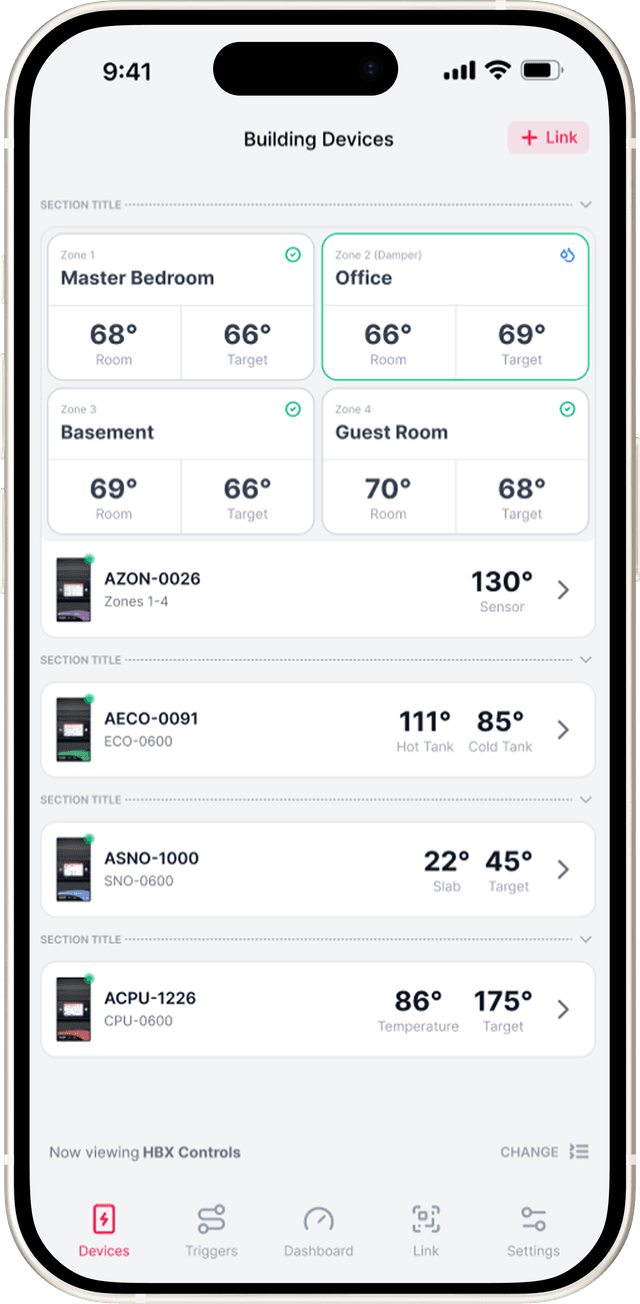

With the free HBX SensorLinx™ mobile app, users can control and monitor their boiler system remotely from their smartphone devices with the ability to adjust system parameters, monitor system temperatures, equipment operation status and receive alarm notifications.
